Plan Number: SSD 2317 | Stock Plan for Purchase

Project Summary

General Information The House Plans and Designs illustrated on seasweptdesign.com are copyrighted works and are the express property of Sea Swept Design. It is illegal to copy or transfer in any way the works illustrated without written permission of Sea Swept Design.

Study Set A Study Set contains Floor Plans without dimensions but with individual room sizes listed, and (4) exterior Elevations. These plans can be purchased to determine what modifications will need to be made or for estimating purposes. Only paper blueprint copies at 1/4” scale will be available (24”x 36” sheet) and will be mailed upon request. Each Set of Study Drawing copies will be available for $20.00 per set along with the purchase of the Study Set. The cost of the Study Set (not copies) will be credited to the account balance of the Purchaser if a Construction Drawing Set of the same design is purchased within (4) months of the purchase of the Study Set.

Construction Set A Construction Set includes 1/4” scale Foundation and Floor Plans, (4) Elevations at 1/4” scale, Roof Framing Plan, Wall Section and Details, (specific drawing of a particular condition). Plans are fully noted and dimensioned with window and door sizes. Elevations indicate material types and trim to be used along with roof pitch, height of structure and general details. Wall Sections specify stud wall sizes, moisture barrier info and siding types to name a few. An Engineering certification (or seal), which is not included, must be obtained by the Purchaser or Builder and it is recommended that your local officials refer you to an individual who can perform this task. Sea Swept Design can refer an Engineer if the project is built locally. With the purchase of a Construction Set the Purchaser is entitled to (5) complimentary sets of blueprint Plans. Additional Blueprint sets are available for $30.00 per set. A charge will be included for UPS, Fed Ex or Express Mail if required.

Minor Revisions to Plans Refers to revisions of Plans that do not change the structural integrity of the Plan. -Limited redesign of Plan where structural walls are not relocated.  Adding of additional deck area, adding or moving windows or doors

Substantial Revisions -Enlarging or Decreasing the size of building footprint -Moving or relocating load bearing walls or partitions -Addition of interior stairs or elevator -Redesign of structure where roof layout is effected

Modification Fee Revisions to Home Designs are billed at $120.00 per hour and an estimate of hours based on the scope of work will be provided once the changes are conveyed prior to performing the work. All other work on behalf of the Purchaser will be billed at $120.00 per hour.

Payment All transactions will be paid by cash, check or money order before Study or Construction Sets are mailed to the Purchaser. All purchases are non-refundable. Upon receipt of payment for Plans, Sea Swept Design will notify the Purchaser by email or phone the expected date for delivery.

Plan Information

Plan Number: SSD 2317
Foundation: Pilings

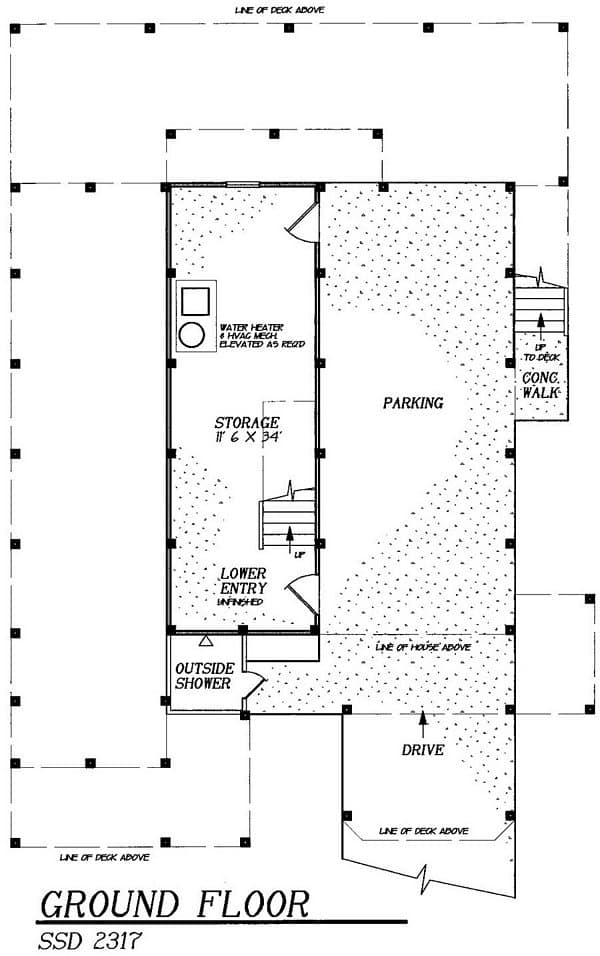

Ground Floor Unheated: 391 s.f.

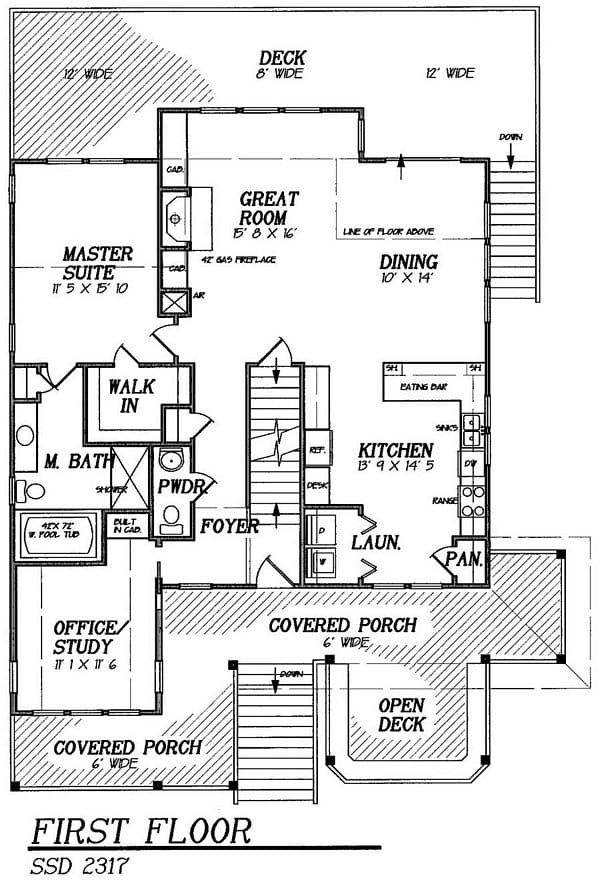

First Floor Heated: 1,483 s.f.

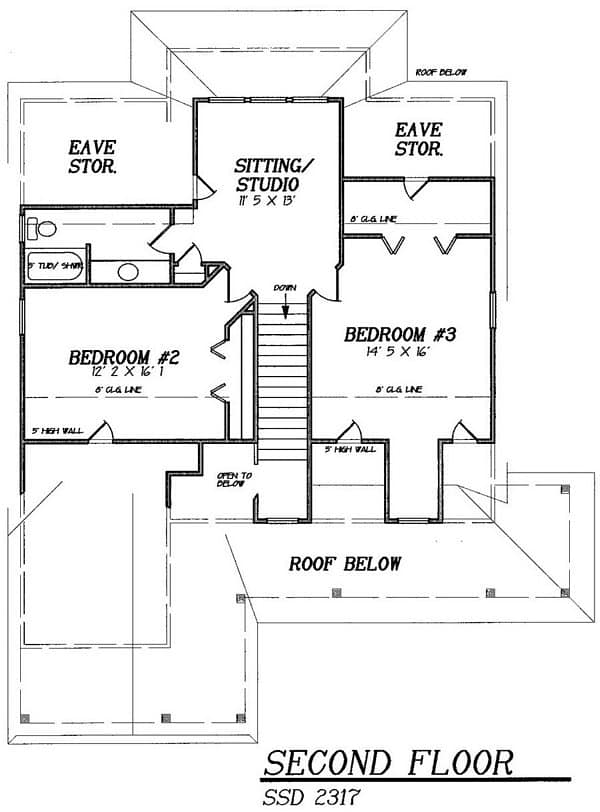

Second Floor Heated: 834 s.f.
Total Heated Area: 2,317 s.f.
Bedrooms: 3 with Studio and Office
Bathrooms: 2
Powder Room: 1
Width: 44′
Depth: 62′
Height: 34′ 6”

Pricing Options

Study Set: $579.00
Construction Set: $1,158.00
